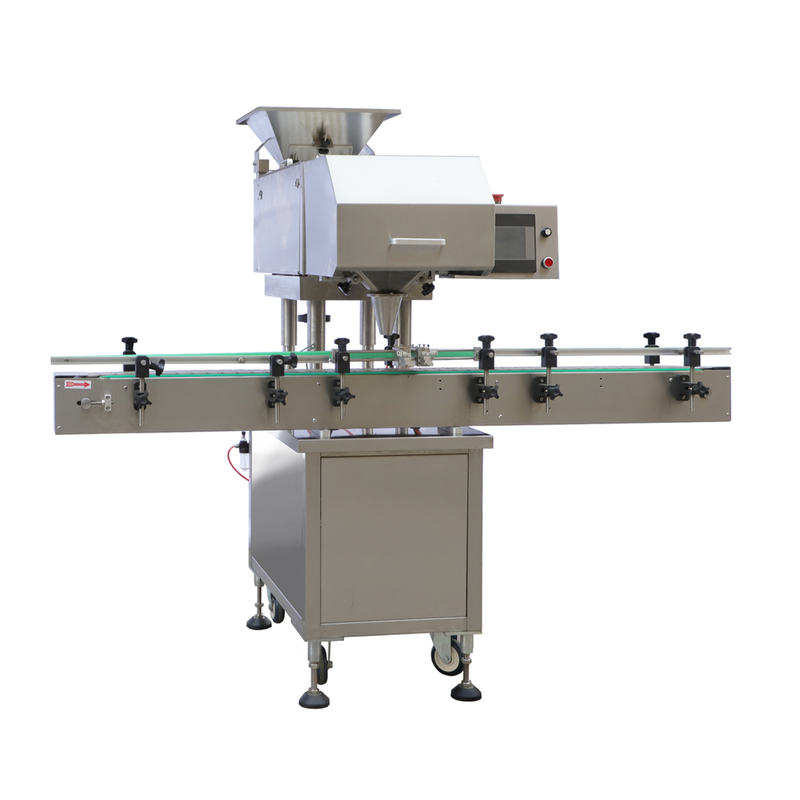

Softgel Candy Counter Counting Tablets Capsule Machine
  • Softgel Candy Counter Counting Tablets Capsule Machine
  • Softgel Candy Counter Counting Tablets Capsule Machine
  • Softgel Candy Counter Counting Tablets Capsule Machine

Softgel Candy Counter Counting Tablets Capsule Machine

محل منبع چین
نام تجاری LTPM China
گواهی CE, GMP, SGS, BV
شماره مدل سری LTEC
جزئیات محصول
استفاده:
کپسول، قرص، آدامس، لاستیک و غیره
قدرت:
220 ولت 50 هرتز تک فاز
انتقال:
الکترونیکی
ظرفیت:
2000-3000 قطعه در دقیقه
نام تجاری:
LeadTop
طول خط:
اختیاری
وزن:
100 کیلوگرم
بعد:
1200mm×660mm×750mm
برجسته کردن:

softgel candy counting machine,automatic capsule counter,tablet counting machine with warranty

,

automatic capsule counter

,

tablet counting machine with warranty

شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش
1 مجموعه
قیمت
negotiable
جزئیات بسته بندی
جعبه چوبی استاندارد صادرات
زمان تحویل
25 روز
شرایط پرداخت
T/T ، L/C ، D/P
قابلیت ارائه
15 SETS / ماه
توضیحات محصول

Products Description

counting and filling machine is a minitype lab equipment which adopts advanced vibration and 8 channel, computer control, dynamic scan counting automatically. The machine with compact design is comply with the standard of GMP. The machine is easy to be operated without training. Compose the light, electric machinery to one set, which is suitable for tablet or capsule counting and filling in lab, semi-works.
This capsules counting mchine combines 16-channel counting heads over a dual-track conveyor on a single frame to double the throughput without doubling the floor space, achieving speeds up to 60 cpm based on 100-count bottles. The machine handles a wide variety of candies,both hard and soft candies of different shapes, sizes and properties.

Features
1. Speeds up to 30 cpm based on 100-count bottles with vibration system

2. Counter discrepancies is less than 1‰

3. Operation stable and lower noise

4. Bottle convey smoothly with dual-track conveyor

5. full-set protecting device keep operation steady and reliable

6. Touch screen Control System which is easy to control

7. Simple Straight Forward Operator Controls

8. On-Screen trouble description which is easy to solve

9. Stainless Frame capsules counting mchine


Main Technical Data

Counting Speed 2000-3000 pieces/minute
Bottle height 40mm-100mm
Bottle opening Φ25- 40 mm
Bottle diameter Φ45 mm – 60 mm
Size of tablet Φ5 mm – 15 mm
Size of capsule 0# – 5#
Power source & consumption 1.5KW, 220v, single phase, 50-60HZ
Compressed air pressure 87 Psi (6 Kgs/ cm2)
Dimensions (L*W*H) 1200mm×660mm×750 mm
Weight 100kg
Working direction Left → Right (or Right → Left)
